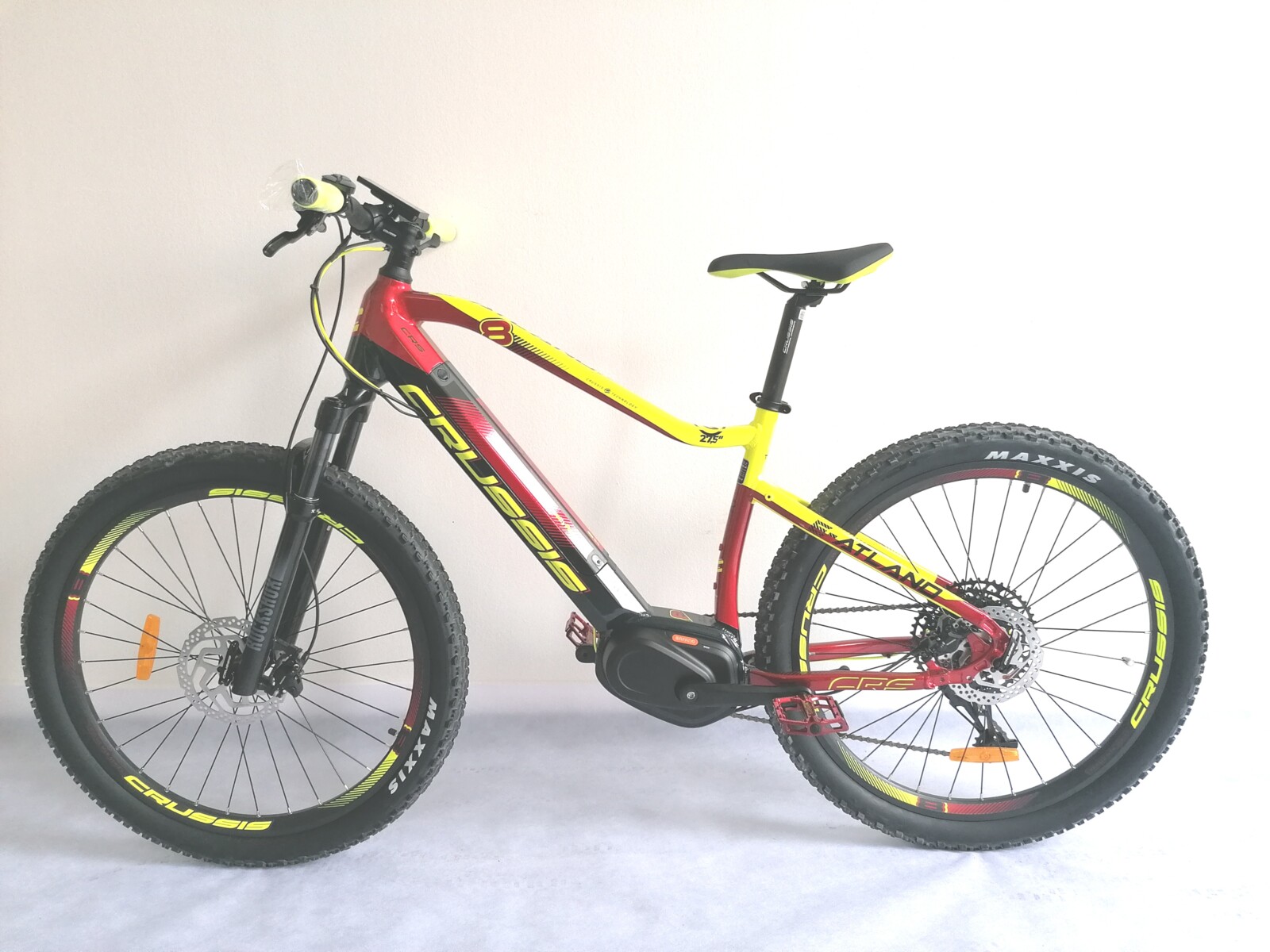

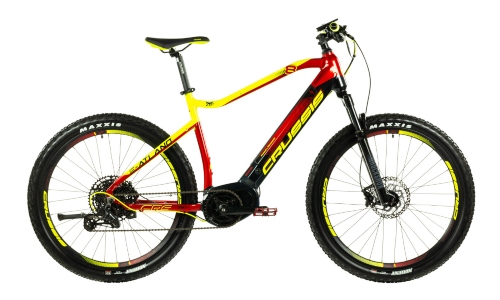

CRUSSIS e-Atland 8.6-L

Mountain e-bike with extra large and fully integrated 900 Wh battery. Together with the Bafang engine this e-bike achieves a more pleasing design while at the same time perfectly covers all the needs of more challanging rides.

Contact us for an alternative
  • motor: Bafang M400 250W, 80 Nm
  • battery: Samsung Li-Ion 900 Wh
  • frame size: 18", 20"
  • number of gears: 12
  • display: BAFANG LCD panel
  • fork stroke: 100 mm

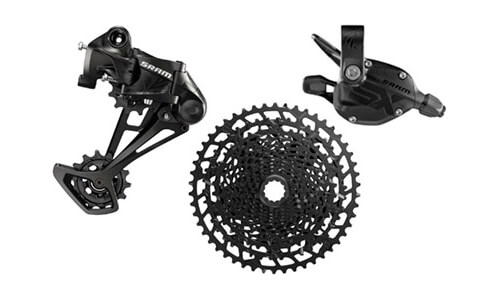

Eagle™ technology brings in new more accurate and smooth gear changes with excellent reliability, It offers a single-gear drive and features high endurance easy control and low weight. The new derailleur X Eagle™ is designed using famous SRAM 1x system code named X-HORIZON™

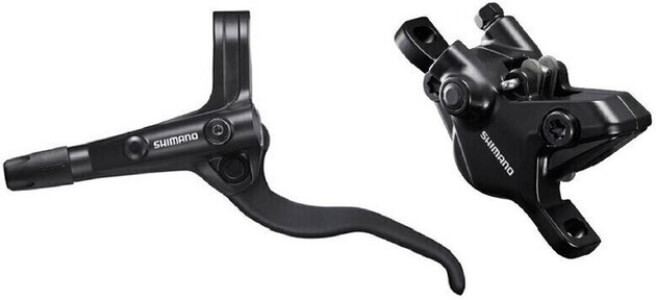

Hydraulic disc brakes SHIMANO BR-MT410 offer excellent performance at reasonable cost. MT410 discs deliver great endurance, quick and easy installation and low noise levels. Pads on this module are attached to 2 piston calipers with quick piston retraction design.

E-bike range calculator

500 Wh
300 Wh 650 Wh 1000 Wh
75 Kg
50 Kg 95 Kg 140 Kg

Dominant route profile:

Flat

Flat

Medium

Medium

Hills

Hills


The e-bike range is approximately

*Factors affecting total range include assist mode settings, technical condition of the e-bike, battery age, ambient temperature, headwind, and riding technique

Our e-Largo 8.6-L model is a very popular mens e-bike for its extra large capacity battery perfect for long and demanding trips across countryside as well as on country roads. It does feature 27.5" wheels but should there be a preference for 29" wheels then please consider our e-Largo 8.6-L model too.

The aluminium frame has been specificaly designed to provide excellent handling and stability on a road further enhanced by a complete integration of the powerful Li-Ion cells Samsung 36V / 900 Wh (25 Ah) battery.

There is no question about this models capabilities and range while there is also a great focus on reliability. M400 is a centre motor from well knows brand BAFANG and while its nominal power output is rated at 250W (500W peak) the torque is 80 Nm. Being a crank drive further helps with weight distribution turning the e-bike into a perfect tool for any trip.

CRUSSIS e-Largo 9.6-L is one of the bikes proudly featured in our high range category and with up to 200km it sits among the best. But please do bear in mind that actual range will always depend on riding style, level of boost, terrain and load / overall weight.

Frame range is from 18" to 20" and standing on 27.5" wheels we find SRAM Eagle SX 12s gear changer and SHIMANO Deore BR-MT410 hydraulic disc brakes. There is a ROCKSHOX FS Judy Silver TK R Solo Air 27,5" (100mm) suspension above front tyre which is known for its grat balance of comfort while maintaning good handling abilities.

MAXXIS ARDENT 27.5" X 2,40 tyres provide good grip regardless of weather conditions and there is a USB port for charging mobile devices on a go also included but this being a mountain bike there is no mudguards, support stand or lights fitted although these can be purchased seperately.

For riders demanding more equipment including the top of the range motor Bafang M500 there is CRUSSIS e-Atland 9.6-L.

Central drive BAFANG Max Drive M400

BAFANG Max Drive M400

The motor has a pedal sensor and a torsional pedal force sensor. The more force the cyclist puts on, greater the force engine puts in thanks to the included smart control unit.

Read more

Display for Bafang Max Drive central drive (M400)

Display for Bafang Max Drive central drive (M400)

Motor assistance can be controlled using LCD screen located on handlebar just like it's on most e-bikes. The screen will display battery status choosen gear motor assistance speed and mileage.

Crussis Brand

CRUSSIS has been manufacturing its own brand of electric bicycles since 2012. GREATEBIKE.EU offers cost-effective, innovative urban e-bikes designed by Crussis and provides both mechanical and electrical authorised services for Crussis e-bikes for warranty and after-warranty repairs.

They are fast becoming the most popular brand across Europe and have been endorsed by some high profile athletes such as ice hockey legend Jaromir Jagr

Crussis E-bikes

Parameters

arrow

General

Weight incl. battery 22,5 kg
Load capacity 120 kg
arrow

Motor

Centre engine Yes
arrow

Suspension

Front fork ROCKSHOX FS Judy Silver TK Solo Air 27,5", 100 mm travel, fork lock
arrow

Components

Grips CRUSSIS silikonové
Rear hub Crussis disc, industrial bearings, 32D, fixed axle 12x142 mm
Front hub Crussis disc, industrial bearings, 32D, fixed axle 15x100mm
Saddlebag CRUSSIS with lock, 31,6, 350 mm
Saddle Selle Royal
Racks CRUSSIS 27,5", dvoustěnné, vložkované, 25mm
Handlebars CRUSSIS Al, 740 mm
Extender CRUSSIS Al, 60 mm, fixed
Coats Maxxis Ardent 27,5 x 2,40
arrow

Transmission

Cassette Sram CS-PG1210 Eagle, 11-50z
Number of gears 1 x 12
arrow

Brakes

Front brakes SHIMANO Deore BR-MT410, hydraulic, rotor 180 mm
Rear brakes SHIMANO Deore BR-MT410, hydraulic, 160 mm rotor
